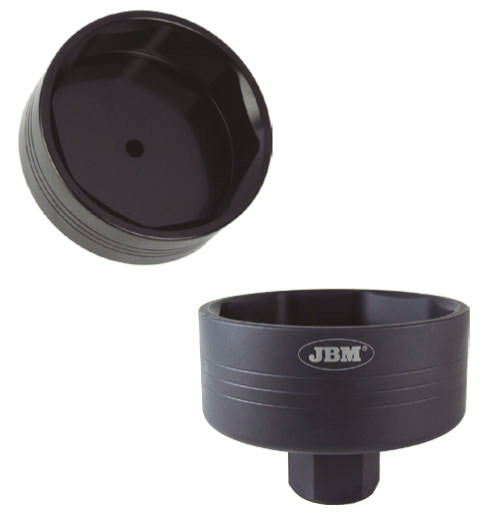

109mm, 8-point, BPW. Specialist socket for disassembling the rear axle hub of a truck.
▸ 109MM 8-POINT PROFILE — dedicated to BPW rear axle hub nuts
▸ JBM manufacturer WARRANTY — Spanish brand present in 68 countries for over 30 years
▸ 41MM HEX DRIVE — fits all 1" impact wrenches
The BPW hub nut with an 8-point 109mm profile requires the correct socket — without it, you risk damaging the nut and wasting time. JBM 52916 is a tool made exactly for this task: 8-point 109mm profile, 41mm hex drive, impact steel. Insert, press, the nut comes off.
Why JBM 109mm 8-point BPW Socket?
- ✓ 109mm 8-point profile — precise fit for BPW rear hub nut
- ✓ 41mm hex drive — standard interface for 1" impact wrenches
- ✓ Impact steel — withstands high torque from pneumatic wrenches
- ✓ Compact dimensions — 155×140×110mm, weight 2.57 kg
- ✓ Complements the BPW series — together with 52914 (120mm) and 52915 (oval 111mm)
Specification:
- Diameter: 109 mm
- Profile: 8-point
- Drive: 41mm hex
- Application: BPW rear axle
- Package dimensions: 155×140×110 mm
- Weight: 2.57 kg
- Catalog number: 52916
Who is it for?
For mechanics and truck services with BPW axles — when replacing hub bearings, seals, or performing rear axle repairs. BPW is the standard in European truck transport.
▸ LIMITED AVAILABILITY
Specialist socket — available in limited quantity. Fleet services — ask for wholesale price.
FAQ
What is the difference between 52916 (109mm) and 52914 (120mm)?
They differ in nut diameter: 52916 is 109mm 8-point, 52914 is 120mm 8-point. Choose based on the hub nut size on your BPW axle.
Which impact wrench should I use?
Drive 41mm hex — 1" impact wrench. We recommend JBM 52814 (3260 Nm) or JBM 51211 (2034 Nm).
Is the socket covered by a warranty?
Yes — JBM manufacturer warranty, claims handled in Poland.
Do I need to buy all three BPW sockets?
Depends on the fleet. Different generations and types of BPW axles use different nut profiles. Contact us — we will advise which sockets are needed for your vehicles.
