JBM 55158 — EV battery lifting frame, 1500 kg

1500 kg
frame capacity
4
chains
37 kg
frame weight
EN 13155
lifting accessory for cranes
3 years
JBM warranty
JBM 55158 frame hanging on the hook of a JBM 2T workshop crane Shackle for the crane hook Adjustable width 4 chains · 4 points Crane — not included
JBM 55158 · 1.443 zł net

How much can your crane lift?

Crane capacity at the boom position
1500kg
max. battery weightLimited by the frame — 1500 kg
Rule: crane capacity at the given position − 37 kg for the frame, but no more than 1500 kg. No extra slings.
Positions as marked on the boom of the JBM 2T crane (50831) in the photo. Different crane? Check its capacity plate.
JBM 55158 · EV battery lifting frame 1500 kg
1.443 zł net · + VAT by country · oversize courier PLN 60
0% VATVIESfor EU businesses outside Poland with an active VIES number · in Poland the invoice includes 23% VAT · reverse charge
In stock: 5 pcs
Request a proforma
PLN 60 — Poland €35 — DE, NL €38 — FR, ES €40 — AT, BE, IT Other EU countries — cost shown in the cart United Kingdom — order via WhatsApp USA and Canada — we do not ship
What you get

Frame and 4 chains with hooks

JBM 55158 frame in 3/4 view with four chains 1 2 3 4 5
  • 1Shackle with a red pin
    hang it on the crane hook
  • 2Centre beam with sliding tubes
    rows of holes for setting the width
  • 3Cross beams
    at both ends, also with holes
  • 4Pins with R-clips
    lock the width you set
  • 5Mounts with eye nuts
    the chains hang here
Included according to JBM: frame + 4 chains with hooks
The crane is not included.
Front view
Joint with the JBM logo

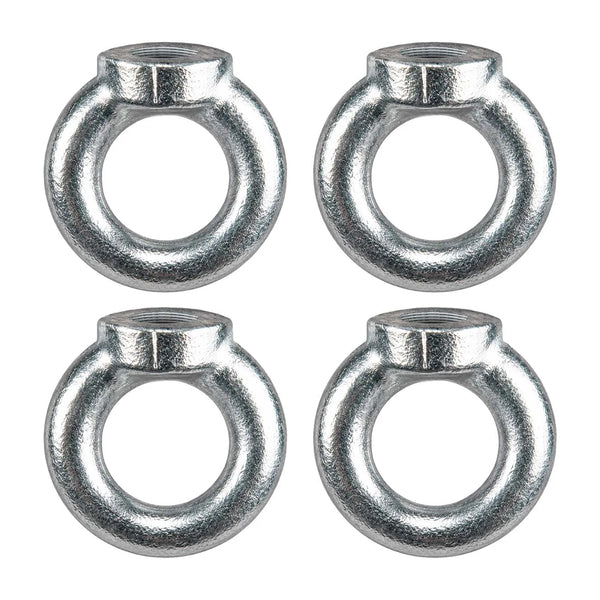

Eye nuts (manufacturer’s photo)
JBM 2T folding workshop crane
No crane yet?

JBM 2T folding workshop crane

1.599 zł net
In the manufacturer’s photos, the frame hangs on exactly this crane.
The full 1500 kg of battery — only with the boom in the “2T” position. Battery 1500 kg + frame 37 kg = 1537 kg; in the “1½T” position that already exceeds the crane’s capacity.
View the crane
Shackle of the JBM 55158 frame on the hook, with CE and 1.5T labels REF. 55158 · CE · 1.5T
Dimensions, standards, delivery, warranty

Lifting accessory to EN 13155, shipped as an oversize courier parcel

  • Dimensions1450 × 990 × 1160 mmdimensions stated by JBM (frame extended)
  • Weight37 kg
  • Standards2006/42/EC · EN ISO 12100:2010 · EN 13155:2020+A1:2025EC Declaration of Conformity (PDF) · JBM data sheet (PDF)
  • Cat. no. / EANJBM 55158 · 8435034551587
  • DeliveryPLN 60 — Poland · €35 — DE, NL€38 — FR, ES · €40 — AT, BE, IT · other EU countries — cost in the cart
  • Outside the EUUnited Kingdom — via WhatsAppUSA and Canada — we do not ship
3 yearsJBM warranty — material and manufacturing defects
0% EU VATVAT invoiceProforma for your company
FAQ

Questions before you order

Which crane does the frame work with?
According to JBM, the frame is designed for use with a crane or workshop crane — you hang it on the hook by its shackle. In the manufacturer’s photos it hangs on the JBM 2T folding crane. The capacity of the whole setup is set by the weaker link: the frame takes 1500 kg, and the crane takes whatever its capacity plate states for the given boom position, minus 37 kg for the frame.
Can I lift 1500 kg with the JBM 2T crane?
Only with the boom in the “2T” position. Battery 1500 kg + frame 37 kg = 1537 kg — in the “1½T” position that already exceeds the crane’s capacity. We calculate from the markings on the boom of the JBM 50831 crane.
Which vehicles and batteries does it fit?
JBM does not publish a list of EV models or the spacing of battery mounting points. The frame has an adjustable width and 4 chains. Send us the battery weight and dimensions on WhatsApp — we’ll compare them with the manufacturer’s data before you order.
What is included?
The frame with its shackle and — according to the JBM description — 4 chains with hooks. The crane is not included.
Which standards does it meet, and is there a manual?
EC Declaration of Conformity: Machinery Directive 2006/42/EC, EN ISO 12100:2010 and EN 13155:2020+A1:2025 (non-fixed load lifting attachments for cranes). JBM publishes a data sheet and the declaration (PDF); there is no user manual on the manufacturer’s website.
How much is delivery, and what is the warranty?
Oversize courier: PLN 60 within Poland, €35 to DE and NL, €38 to FR and ES, €40 to AT, BE and IT; for other EU countries the cost is shown in the cart. United Kingdom — via WhatsApp; USA and Canada — we do not ship. 3-year JBM warranty, VAT invoice, 0% EU VAT for businesses with an active EU VAT number.
